Tributary to Lac La Biche

Culvert Design
Written By Tanya Camp

After Replacement

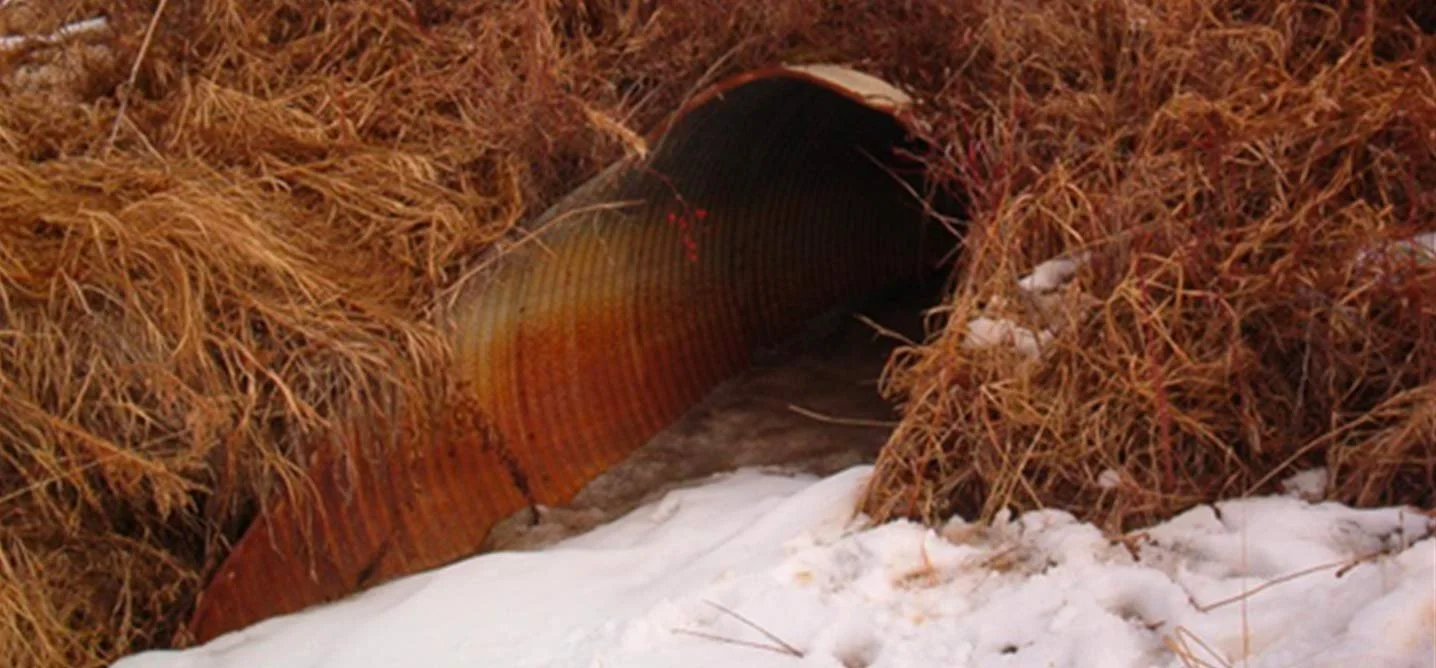

Before Replacement

Custom concrete headwalls were designed to avoid the need for land purchase and fish habitat compensation measures. The new culvert was constructed completely within the existing right-of-way. Additionally, MPA effectively formulated a culvert design that would incorporate a CSP barrel that was previously purchased by the County.  These design considerations resulted in cost savings while still achieving the needs of regulators, provincial funding agencies and the County.

Roles and Responsibilities: Design, Tender Preparation and Management, Construction Supervision, Post Construction

Project Details

Location: Lac La Biche, Alberta

Original Structure: 2 - 1524 mm diameter CSP culverts.

Replacement Structure: 1 - 2400 mm diameter CSP x 18 m invert length culvert with concrete headwalls.
